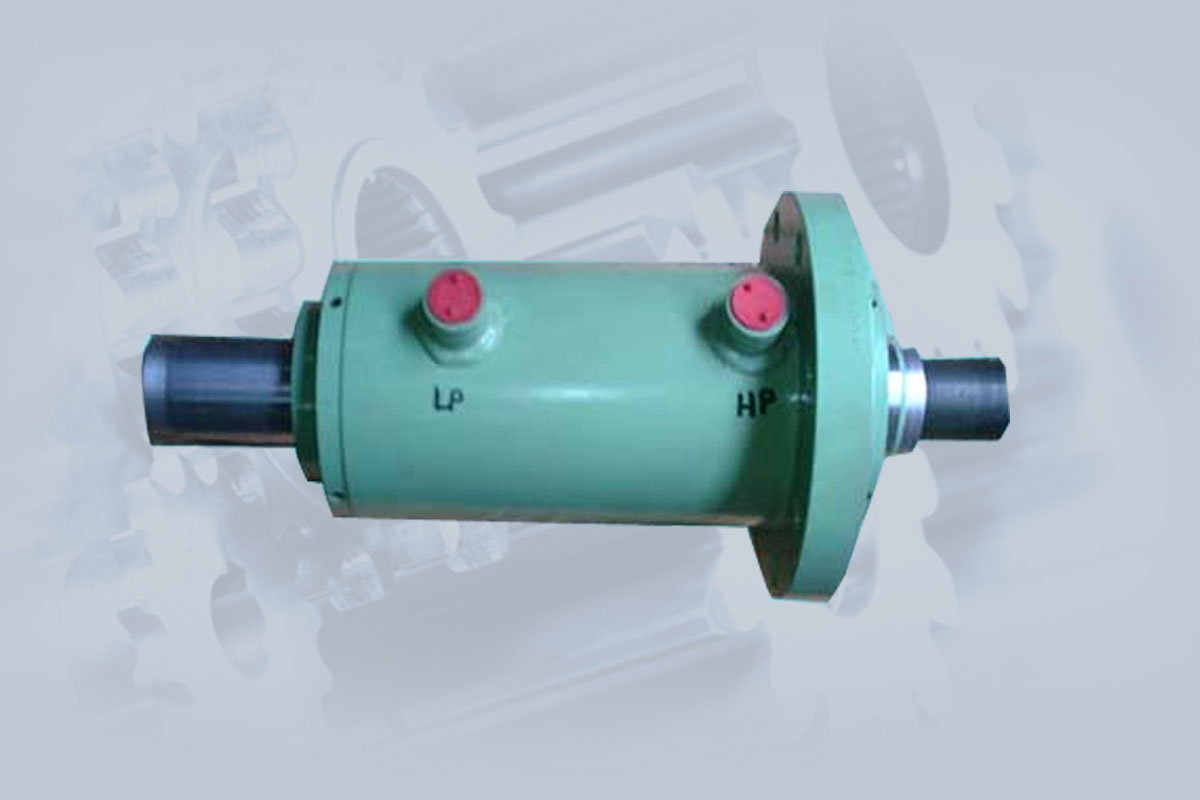

Double Rod Ended Hydraulic Cylinder
Apologies for any redundancy in my previous responses. Based on the information available from PULSE ENGINEERING, the Double Rod Ended Hydraulic Cylinder is designed for applications requiring equal force and speed in both directions. This design features a rod extending from both ends of the cylinder, allowing for balanced force distribution and precise control in systems such as material handling, presses, and lifting equipment.
Key Features
Double Rod Design: Piston rod extends from both ends, offering equal stroke lengths and force in both directions.
Balanced Force Output: Provides symmetrical performance, ideal for center-mounted or load-balancing systems.
Durable Construction: Available in Tie Rod, Welded, and Screwed body types.
Customization: Can be customized for high temperature (up to 150°C), pressure rating, and mounting.
Low Maintenance: Designed for easy servicing and long operating life.
Specifications
• Bore Diameter25 mm to 600 mm
• Stroke Length: Up to 4000 mm
• Operating Pressure: 160, 210, 350, 550, and 700 kg/cm²
• Cylinder Types: Single Acting, Double Acting, Multi-stage
• Construction Types Tie Rod, Welded, Screwed Ends
• Mounting Options Clevis, Trunnion, Front/Bottom Flanged, Foot Lug
Applications
• Material handling systems
• Press machines
• Clamping devices
• Lifting and tilting equipment
• Rolling mills
• Cranes and hoists
• Automation systems
• Construction and heavy equipment
