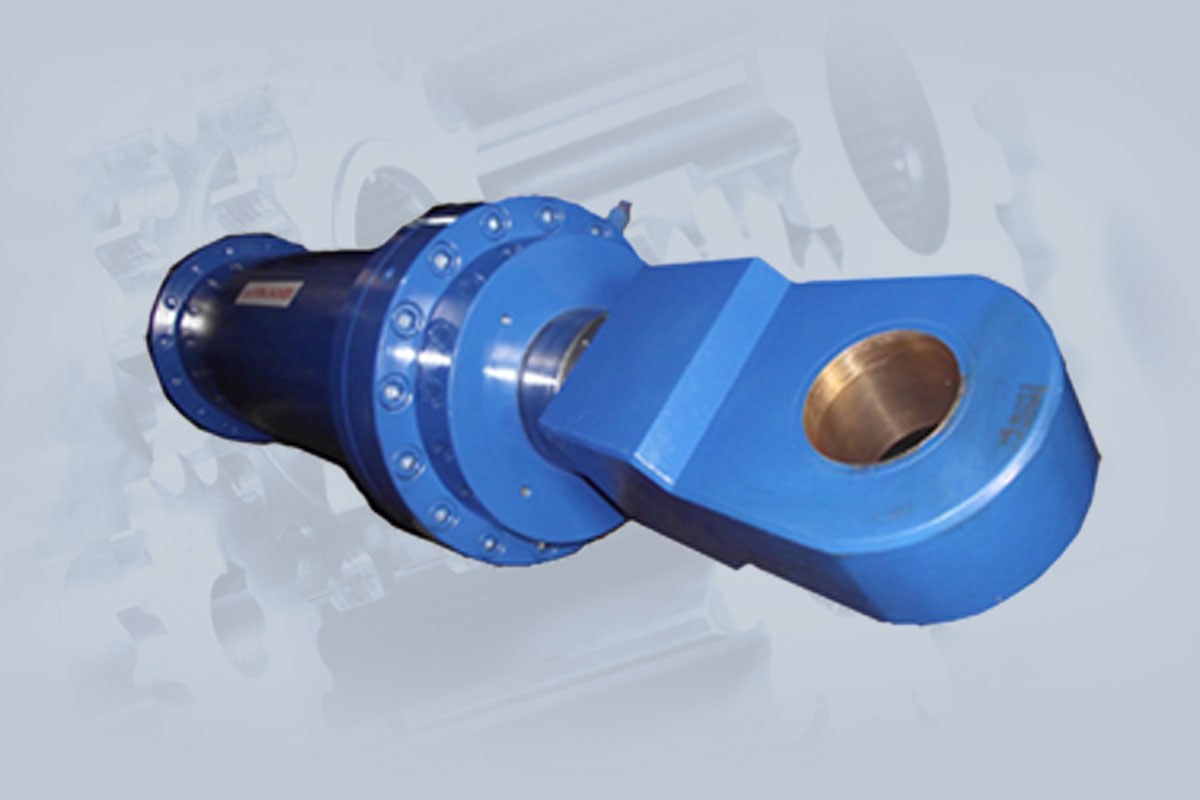

Welded Type Heavy Duty Hydraulic Cylinder
The Welded Type Heavy Duty Hydraulic Cylinder is designed for applications requiring robust performance and durability. Unlike tie rod cylinders, welded cylinders offer a more compact design and are preferred for heavy-duty applications. They are commonly used in industries such as general engineering, pressing, clamping, lifting/tilting, rolling mills, and cranes
Key Features
Heavy Duty Applications: Engineered to withstand high-pressure environments.
Compact Design: Space-saving design suitable for confined spaces.
Welded and Screwed Construction: Ensures structural integrity and ease of maintenance.
Versatile Mounting Options: Includes Clevis, Trunnion, and Flange mountings.
High Temperature Resistance: Suitable for applications up to 150°C (if required).
Specifications
• Bore Sizes: Ø25mm to Ø600mm
• Stroke Length: Up to 4000mm
• Operating Pressure: 160 kg/cm², 210 kg/cm², 350 kg/cm²
• Special Pressure Range: 550 kg/cm² and 700 kg/cm²
• Types: Single Acting, Double Acting, Multi-Stage Cylinders
• Mounting Types: Clevis Mounted, Trunnion Mounted, Front Flanged, Bottom Flanged, Foot Lug
Applications
• General Engineering
• Pressing and Clamping
• Lifting and Tilting Operations
• Rolling Mills
• Cranes and Material Handling Equipment
