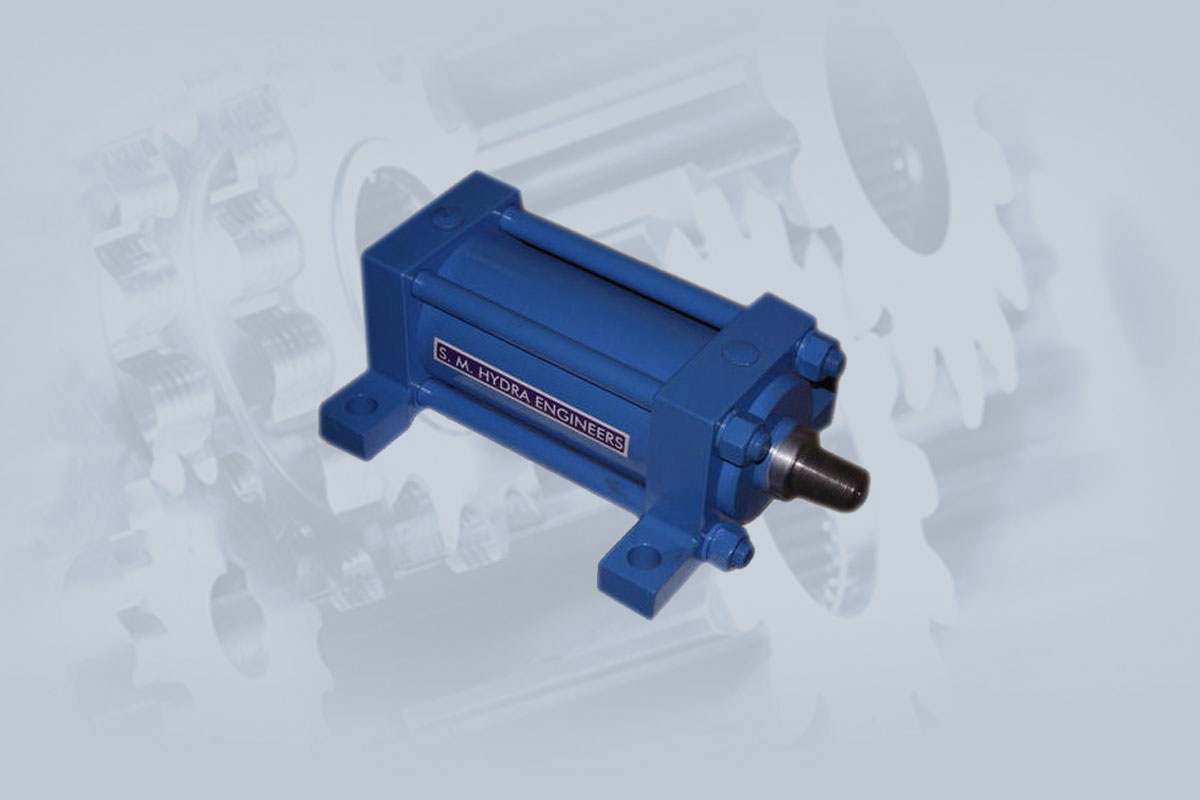

Tie Rod Type Hydraulic Cylinder
Tie Rod Type Hydraulic Cylinders are designed for light to medium-duty applications. They utilize high-tensile strength threaded steel rods to secure the end caps to the cylinder barrel, allowing for easy disassembly and maintenance. This design is ideal for applications requiring compact sizes and moderate pressures.
Key Features
Light to Medium Duty Applications: Suitable for tasks requiring moderate force.
Compact Design: Space-saving design for confined spaces.
Operating Pressure: Ranges from 70 kg/cm² to 210 kg/cm².
Ease of Maintenance: Designed for easy disassembly and repair.
Versatile Mounting Options: Includes Clevis, Flange, Trunnion, and Rod End Forks.
Versatile Mounting Options: Includes Clevis, Flange, Trunnion, and Rod End Forks.
Applications: Widely used in the Automotive and Machine Tool Industries.
Specifications
• Bore Sizes: Available in various diameters to suit specific requirements.
• Stroke Length: Customizable to meet application needs.
• Operating Pressure: 160 kg/cm², 210 kg/cm², 350 kg/cm²
• Materials: Constructed with high-quality materials for durability and performance.
• Mounting Styles: Multiple options to ensure compatibility with different systems
Applications
• Automotive Industry: For assembly lines and testing equipment.
• Machine Tool Industry: In CNC machines and other automated machinery.
• Industrial Equipment: For material handling and processing applications.
