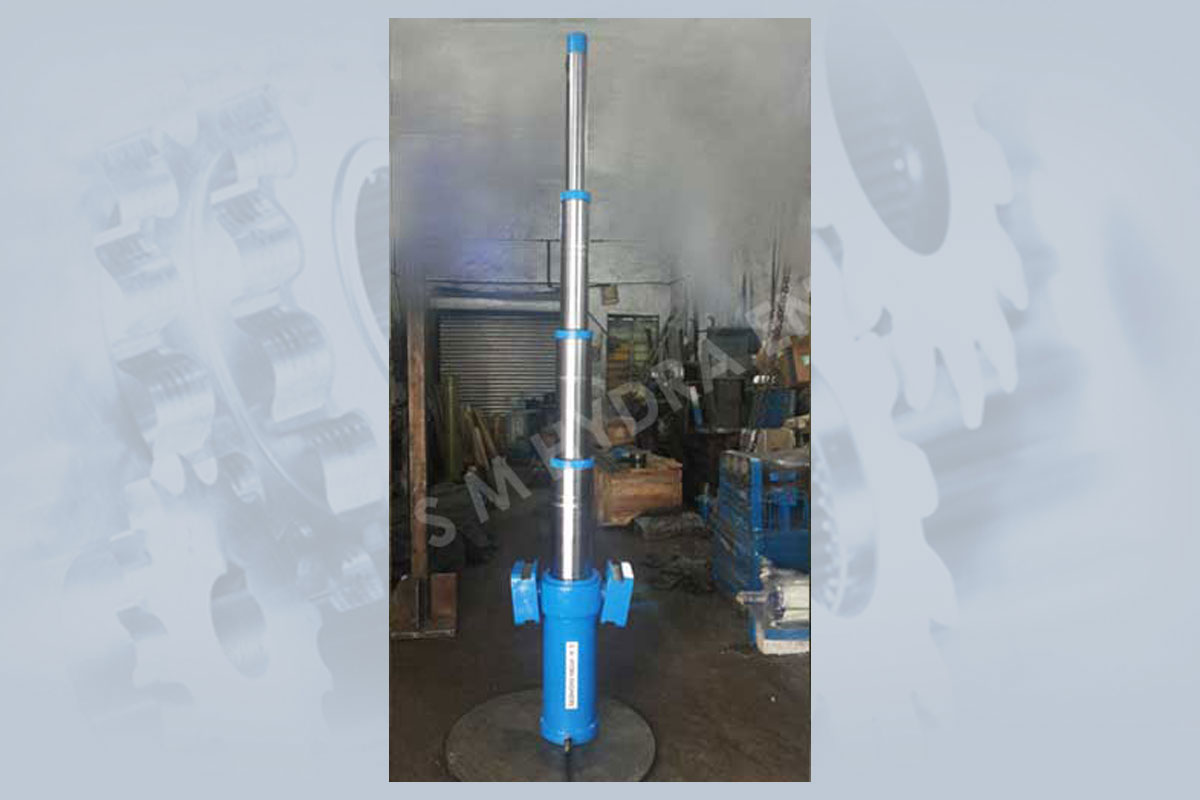

Telescopic Hydraulic Cylinder
Telescopic hydraulic cylinders, also known as multi-stage cylinders, are designed to provide an exceptionally long output travel from a very compact retracted length. They consist of multiple nested stages that extend sequentially, allowing for greater stroke lengths compared to standard cylinders. This feature makes them ideal for applications where space is limited but a long extension is required.
Key Features
Low Retracted Length: Allows for installation in confined spaces.
High Stroke-to-Retracted Length Ratio: Provides long strokes from a compact cylinder.
Operating Pressure: Up to 350 kg/cm².
Single or Double Acting: Versatile operation modes.
Maximum Stages: Up to 5 stages.
Applications: Material handling, agricultural machinery, transport hydraulics, lifting purposes, and other industrial applications.
Specifications
• Stages: Up to 5 stages.
• Stroke Length: Customizable to meet application needs.
• Operating Pressure: Up to 350 kg/cm².
• Mounting Types: Clevis, trunnion, flange, and foot lug.
• Mounting Styles: Multiple options to ensure compatibility with different systems
Applications
• Automotive Industry: For assembly lines and testing equipment.
• Machine Tool Industry: In CNC machines and other automated machinery.
• Industrial Equipment: For material handling and processing applications.
